Description

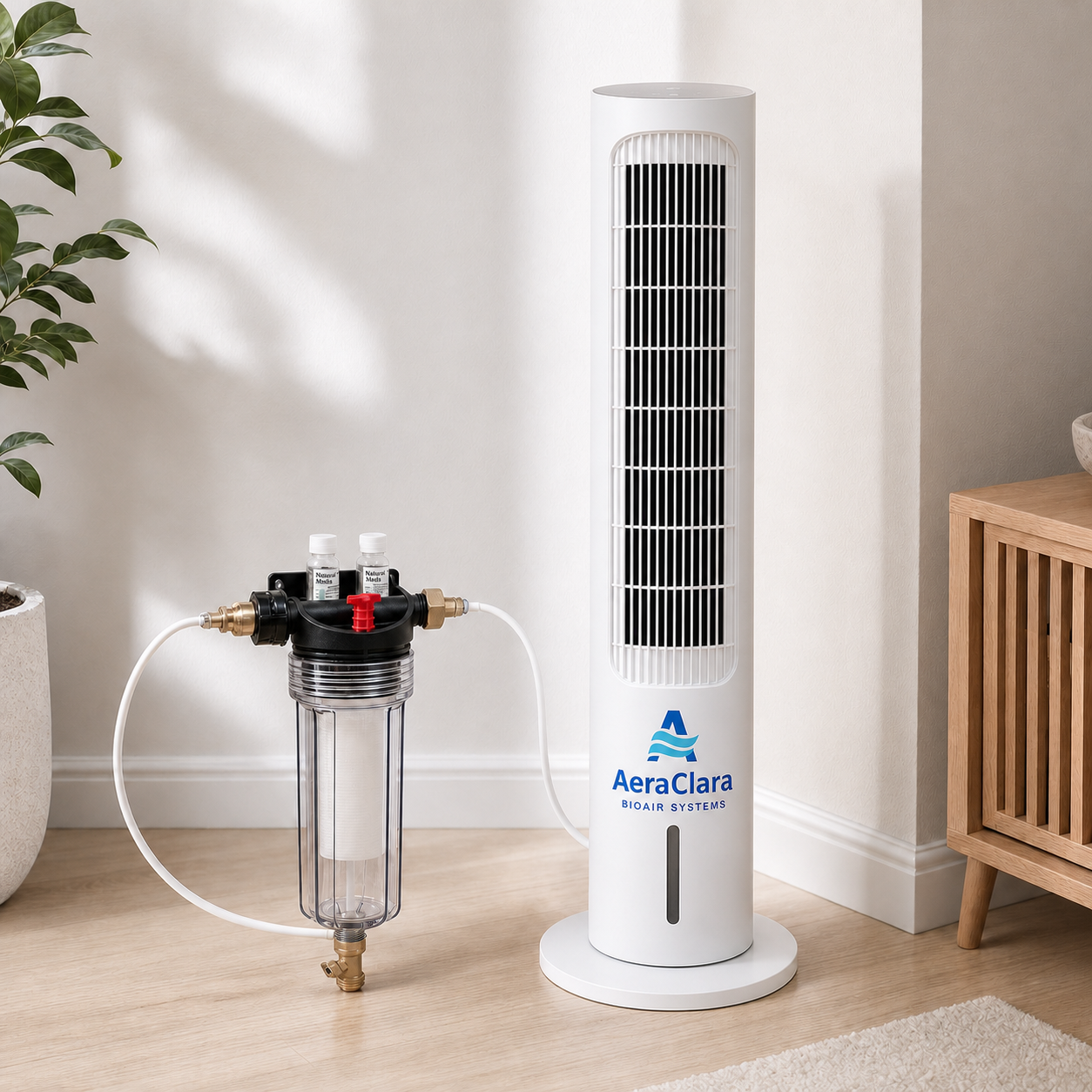

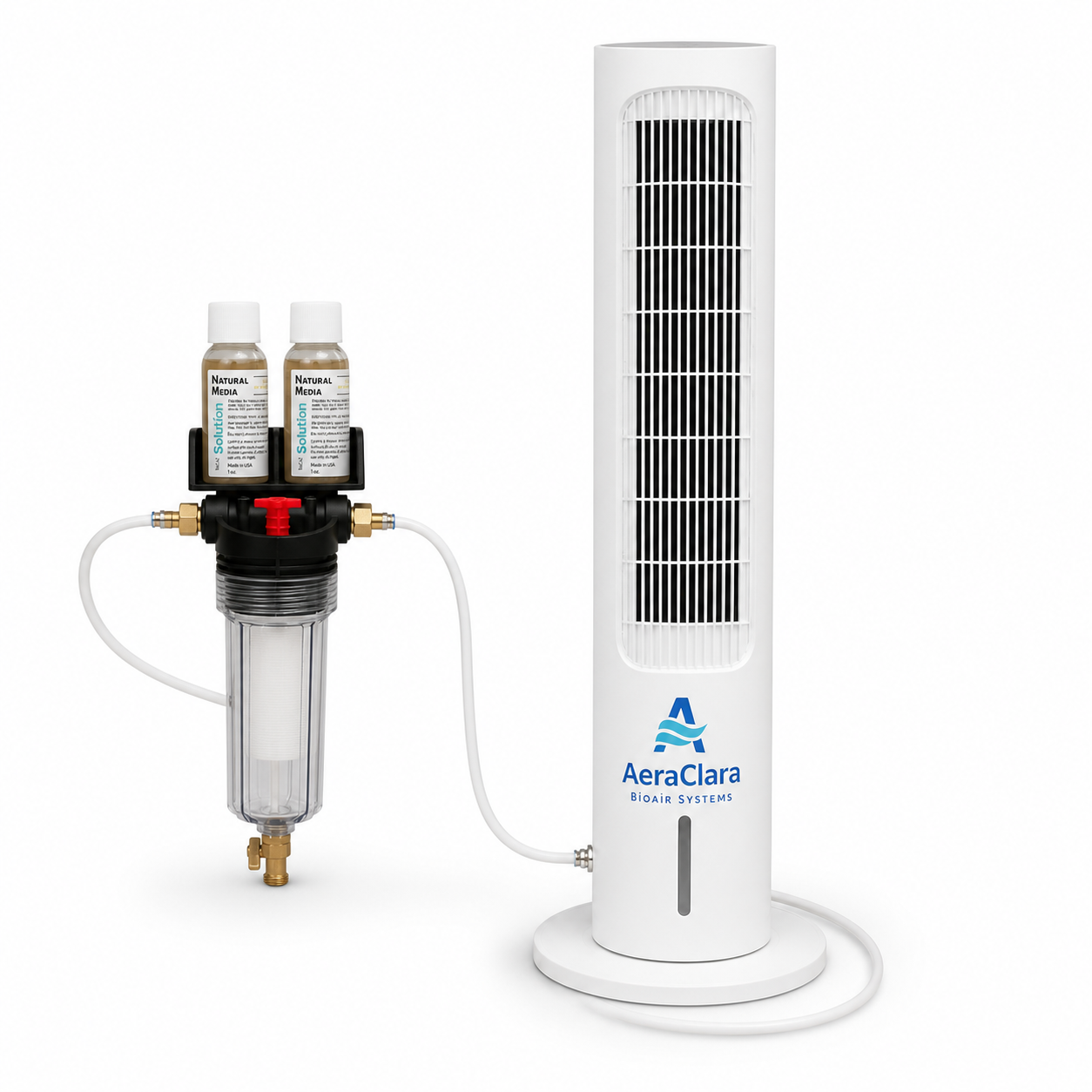

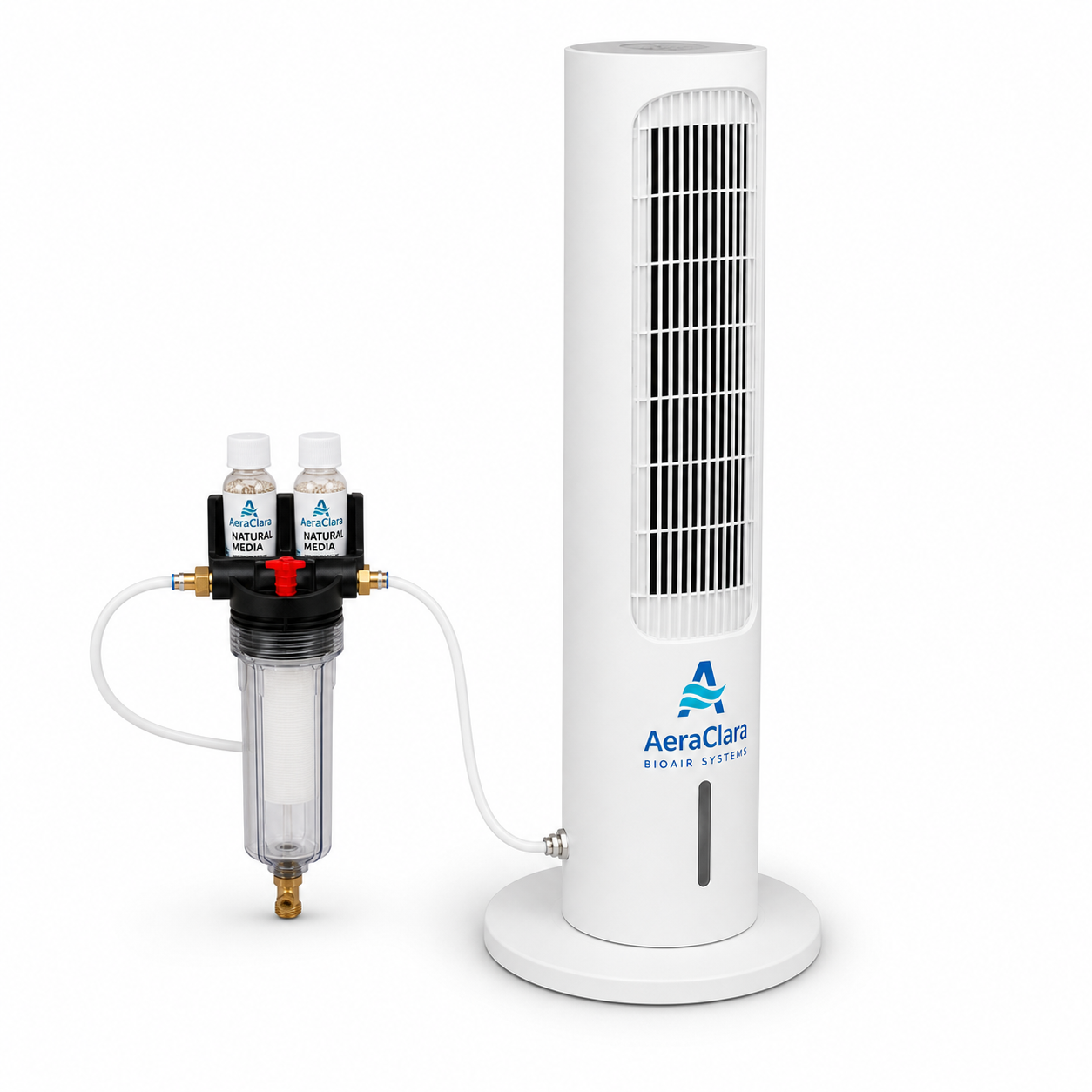

The AeraClara Bioair Systems Advanced Model is designed to support cleaner, fresher indoor environments through a multi-stage air treatment pathway.

The system uses a water-fed reactor with automatic fluid level control, an external enzyme injector, and an advanced titanium dioxide/hydroxyl module. Once installed and started, the reactor is designed to maintain its operating level automatically, while the external injector supports scheduled enzyme replenishment and filter service.

The Advanced Model is built for clean installation, simple visual checks, and predictable ongoing maintenance. One system covers approximately 400 square feet, with expanded configurations available by feeding multiple reactors from one injector/water source using a Y-adapter.

AeraClara is ideal for homes, offices, wellness spaces, waiting rooms, hospitality areas, and other indoor environments where ongoing air treatment and ease of maintenance matter.

Key Features

• Advanced multi-stage system using wetted filtration, enzyme treatment, and titanium dioxide/hydroxyl technology
• Automatic fluid level control helps maintain the reactor’s normal operating level after startup

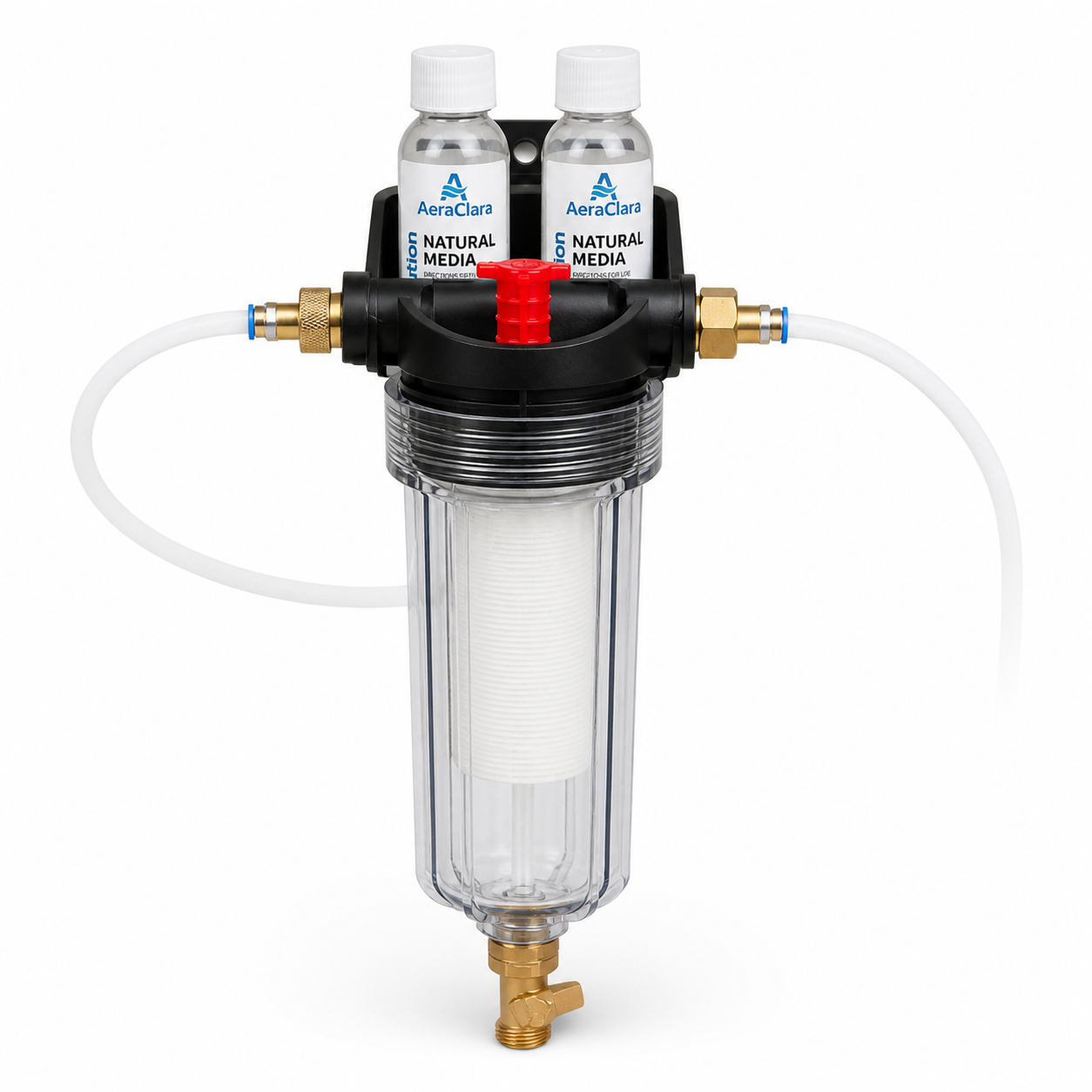

• External enzyme injector supports scheduled replenishment without opening the main tower
• Front level window allows quick visual operating checks
• 90-day routine maintenance cycle for enzyme replenishment and filter service
• Approx. 400 sq. ft. coverage per system
• Expandable configuration allows multiple reactors to be served from one injector/water source
• Modern white tower design suitable for residential and professional interiors
• Authorized-service approach for advanced module and UV lamp replacement

What’s Included

• AeraClara white tower reactor unit
• External injector/filter assembly
• Natural Media enzyme solution
• Supplied tubing and fittings
• Water tap connection components
• Installation and maintenance instructions

How It Works

AeraClara uses a structured air treatment pathway:

1. Wetted Filtration
Air passes through the wetted filtration stage inside the system.

2. Enzyme Treatment
The Natural Media enzyme solution supports treatment within the water-fed system.

3. Titanium Dioxide/Hydroxyl Module
The Advanced Model includes a titanium dioxide/hydroxyl system as part of the purification pathway.

4. Treated Air Return
Air exits the reactor and returns to the room.

Maintenance

Routine maintenance is performed every 90 days, unless otherwise directed by AeraClara.

Maintenance includes:

• Turning off the water supply to the injector
• Draining 3–6 ounces from the bottom injector valve
• Adding 1–2 ounces of enzyme solution
• Servicing the filter
• Restoring water supply
• Confirming the reactor level returns to approximately halfway up the level window

The UV lamp is expected to last approximately three years before replacement. UV lamp replacement should be performed by AeraClara or an authorized service provider.

Coverage

One AeraClara system covers approximately 400 square feet.

For additional coverage, multiple reactors may be connected to one injector/water source using a Y-adapter at the injector output. Enzyme dosing should be adjusted proportionally to the number of reactors served.

Installation Note

AeraClara requires connection to a suitable water source. The supplied tapping kit is best suited for copper water pipe. For other pipe types, contact AeraClara or your installer for the appropriate connection method.

Safety & Service Note

Do not modify, bypass, or remove the advanced titanium dioxide/hydroxyl components. Do not operate the unit with covers removed. Advanced module service and UV lamp replacement should be completed only through AeraClara-approved service procedures.
